I’m trying to build a project to plan delivery routes using the Leaflet.js mapping API. At this point, I am using the supplied HTML and JavaScript files provided by Leaflet. When correctly set up, when I put the following into BBEdit it displays the map, with markers and several buttons, one of which is shows a drop-down list of locations. BBEdit does this internally or via a preview in Safari. When the indentical code is run in Panorama X, on Tahoe, the map loads, the markers don’t and the drop-down list of locations is empty.

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Multiple Locations on Map</title>
    <!-- Leaflet CSS -->
    <link rel="stylesheet" href="https://unpkg.com/leaflet@1.7.1/dist/leaflet.css" integrity="sha512-xodZBNTC5n17Xt2atTPuE1HxjVMSvLVW9ocqUKLsCC5CXdbqCmblAshOMAS6/keqq/sMZMZ19scR4PsZChSR7A==" crossorigin=""/>
    <!-- Leaflet JS -->
    <script src="https://unpkg.com/leaflet@1.7.1/dist/leaflet.js" integrity="sha512-XQoYMqMTK8LvdxXYG3nZ448hOEQiglfqkJs1NOQV44cWnUrBc8PkAOcXy20w0vlaXaVUearIOBhiXZ5V3ynxwA==" crossorigin=""></script>
    <!-- Custom Styles -->
    <link rel="stylesheet" type="text/css" href="css/styles.css">
</head>
<body>
    <div id="mymap" style="height: 600px;"></div>

    <h2 class="heading"> Some Indian Monuments </h2>
    <div class="button-group flex-style">
        <div class="component1">
            <button class="map-zoom-out-btn"> Map Zoom Out </button>
        </div>
        <div class="component2">
            <select class="select-dropdown" name="dropdown">
                <option> Select any monument </option>
            </select>
            <button class="search-btn"> Search </button>
        </div>
    </div>
    <footer class="footer flex-style"> Made Using Leaflet JS | <a href="" target="_blank"> Source Code</a> <a href="" target="_blank"> <img src="assets/github-icon.png" /> </a> </footer>

<script>
    let map = L.map('mymap').setView([19.5937, 78.9629], 5);
let ourData = [];

L.tileLayer('https://{s}.tile.openstreetmap.org/{z}/{x}/{y}.png', {
    attribution: '&copy; OpenStreetMap contributors',
    maxZoom: 20,
    minZoom: 2,
    tileSize: 512,
    zoomOffset: -1
}).addTo(map);

let iconOption = {
    iconUrl: "./assets/location-marker.svg",
    iconSize: [30, 30]
};
let ourCustomIcon = L.icon(iconOption);

fetch('./assets/location-data.json')
    .then(response => response.json())
    .then(data => {
        ourData = data;
        for(let i=0;i<data.length;i++) {
            let option = document.createElement("option");
            option.value = i+1;
            option.text = data[i].title;
            document.querySelector(".select-dropdown").appendChild(option);

            let marker = L.marker([data[i].latitude, data[i].longitude], {icon: ourCustomIcon}).bindPopup(`<h3> ${data[i].title} </h3> <p> ${data[i].description} </p>`).on('click', () => {
                map.flyTo([data[i].latitude, data[i].longitude], data[i].zoomLevel);
            }).addTo(map);
        }
    })
    .catch(error => alert(error))

document.querySelector(".map-zoom-out-btn").addEventListener('click', () => {
    map.flyTo([19.5937, 78.9629], 5);
});

document.querySelector(".search-btn").addEventListener('click', () => {
    let select = document.querySelector(".select-dropdown");
    let value = select.options[select.selectedIndex].value;
    map.flyTo([ourData[value-1].latitude, ourData[value-1].longitude], ourData[value-1].zoomLevel);
});
</script>


</body>
</html>

I think that the problem lies in the two statements with file references in the JavaScript …

let iconOption = {
    iconUrl: "./assets/location-marker.svg",
    iconSize: [30, 30]
};

and

fetch('./assets/location-data.json')

Any thoughts (or any experience with Leaflet). Thank you!

2

I’ve never heard of Leaflet before, but it certainly looks interesting.

I think that the problem lies in the two statements with file references in the JavaScript

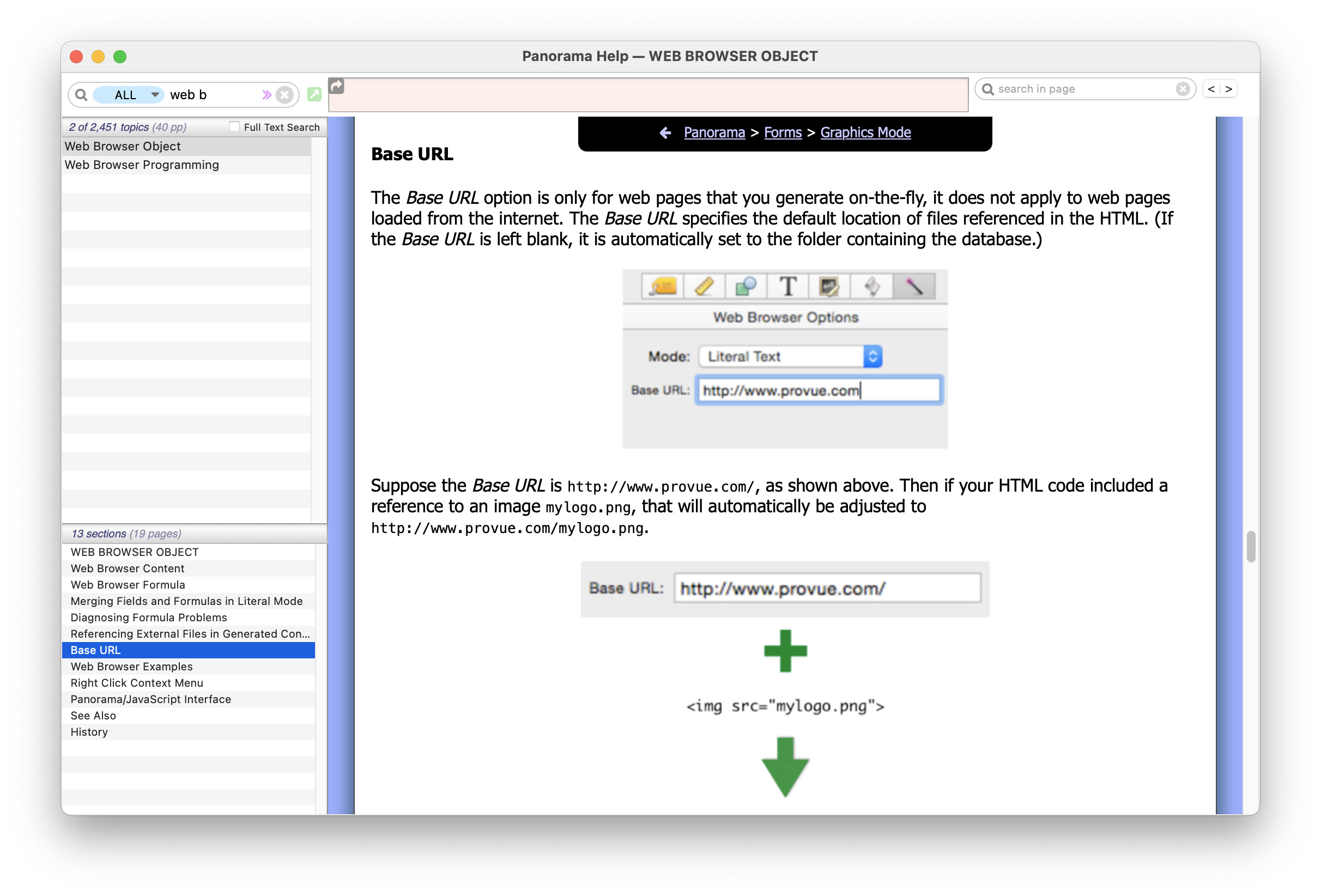

I’m not a JavaScript expert, but I think you’re on the right track. These URL’s would appear to be relative to the Base URL for the page, but if you’re generating this HTML directly from Panorama, the Base URL probably isn’t set up properly. The documentation describes how to do it.

image2424×1644 385 KB
